Concrete Plant

Batcher plant

The NIKKO Batcher plant which realized "big capability at a few investment" by plant instantaneous power.

Double Spiral Flow

In addition to the conventional "INTEGRA" series, old technical common sense is not made into common sense, but it returns to the starting point, and the "DASH" series which carried out technical concentration promises a company competitive power in respect of all costs, and changes the "form" of raw concrete business.The maximum effect (instantaneous power) is attained by the minimum investment. The "DASH" series of NIKKO was born by such how to consider.

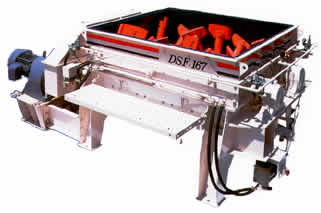

An instantaneous power mixer "DSF" serves as a conclusive factor of the instantaneous power. "DSF (double spiral flow)" shortened kneading time to conventional two thirds.The highest efficiency and system balance of each system are pursued, and not only the steep rise of the quantity of production but production of high-quality raw concrete is correspondence perfectness.

Furthermore, the Batcher plant only for concrete product factories "Batch Pack" was newly developed.The function required for the problem solution with which the concrete product maker is faced now of "manufacture of quantity intensity and high flow concrete" was packed simply.High evaluation is obtained to NIKKO which always repeats the new proposal from a customer's viewpoint, and its technical development.

NIKKO inherits the clear genealogy of new imaginative power and advanced technology, cultivates the new world of a Batcher plant, and continues constant efforts that it should answer to all user needs as the biggest manufacturer also from now on.

INTEGRA SeriesINTEGRA Series
Batch PackBatch Pack

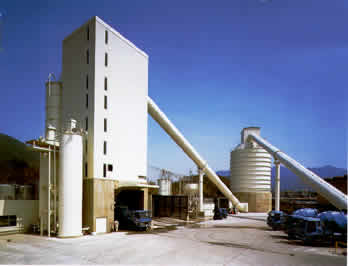

Batcher Plant DASH

The "DASH" series of (instantaneous power) Cncrete Batching Plant produced by Nikko.

Cncrete Batching Plant of New Concept which pursued the highest efficiency and system balance of each system.

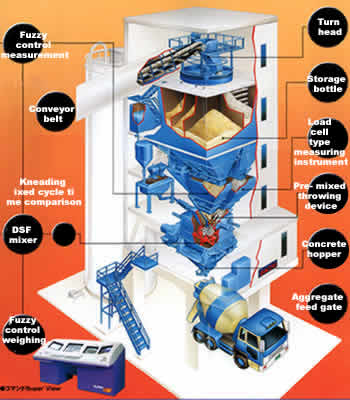

DASH

Turn-head (new design)

  • It became quickly and exact.
  • The measure against wear-proof is also enough.

Strage bin,Measuring gate (new design)

  • The steep rise of the storage efficiency was carried out.
  • It is the measurement gate structure where measurement speed is quicker than the conventional machine.
  • As a measure against wear, a lock rudder is given to a gravel, and resin lining is given to sand.
  • The maintenance floor was equipped standardly.

The meter using load cell equipment

  • The measure against wear and remains preventive measures´╝Ć gravel:10mm Wear-resistant rubber lining, sand:6mm resin lining, Cement: Resin paint and the butterfly valve made of resin, a mixture agent: Highly efficient correspondence ball valve.
