Earth pressure type shield machines (earth pressure type or mud pressure type) produced by Kawasaki Heavy Industries,Ltd., are able to meet any kinds of soil.

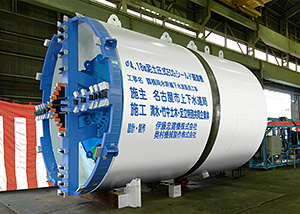

Bubble type earth pressure shield machine (10.80 meters in diameter)
The excavation chamber is made filled with excavated soil, and earth pressure of chamber is controlled to be able to oppose the ground and hydlaulic pressure from working face.
In order to improve the mobility and the quality of stopping water of excavated soil, an additive agent is poured into a cutter face side, and mixed churning of excavated soil and an additive agent is performed by rotation of a cutter.
The earth pressure shield machine developed mechanically and blindly for soft ground repeats improvement of machine structure or an additive, and has developed even into the diameter machine of a super-large quantity of the double-tracked section class of a subway now.
Mud pressure shield machine with which the body can carry out accordion-fold to two steps, and a head cutter can also be crooked (5.32 meters in diameter)
Peripheral beam structural system mud pressure shield machine (4.44 meters in diameter)
Mud pressure shield machine with special bits (3.94 meters in diameter)
Center shaft system mud pressure shield machine (3.13 meters in diameter)
Dome face mud pressure shield machine (2.48 meters in diameter)
Slurry shield machines produced by Kawasaki Heavy Industries,Ltd., are able to meet any requirements, super-large caliber type and high hydraulic pressure.

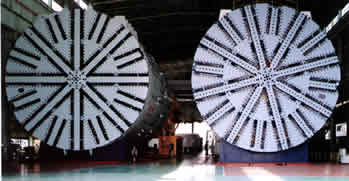

Slurry shield machines for excavating the Tokyo bay aqua-line (14.14 meters in diameter)
Pressurization control of the face is carried out using the high specific gravity and high viscous slurry corresponding to "cutting face water pressure" and "earth pressure".
In process in which this slurry permeates between the ground particles of cutting face, "mud peremeable film" is formed and face is stabilized by applying pressure there.
The slurry shield machine of the "circumferential support type" which Kawasaki Heavy Industries, Ltd. developed in 1975, and the "intermediate support type" developed after that is widely adopted as the soil conditions which carry out congestion as what can respond flexibly, and has developed into the super-large caliber type in which a diameter exceeds 14.0m now.
Slurry shield machine for excavating on a curve (10.02 meters in diameter)
Slurry shield machine for excavating rock ground (10.20 meters in diameter)
Dome type slurry shield machine for excavating the rock ground (4.78 meters in diameter)
Slurry shield machine (5.24 meters in diameter)
Slurry shield machine for excavating long-distance mud stone (3.95 meters in diameter)
Slurry shield machine for excavating long-distance mud stone (3.95 meters in diameter)

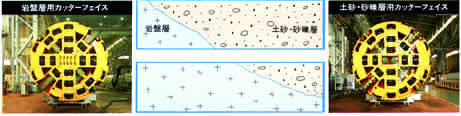

Tunnel boring machines suitable for the compound geology produced by Kawasaki Heavy Industries,Ltd., have 2 kind of spoil discharge systems,"the spoil discharge system on a conveyer belt" and "the spoil discharge system by the screw conveyer". A spoil discharge system can be chosen according to construction conditions.
In a rock stratums, Tunnel boring machines suitable for the compound geology made from Kawasaki Heavy Industries,Ltd., is excavated by "the spoil discharge system on a conveyer belt", and is excavated by "the spoil discharge system by the screw conveyer" which thought the mountain stop function as important at soft ground.
Conveyer belt equipment
Screw-conveyer equipment
Equipment for propulsion
Possession type
In accordance with each spot, the total coordination also of the equipment for the shield driving method adopted can be carried out in city engineering works. [ many ]
